| Voltage | 100V~120V 60HZ/220V~240V 50HZ |
| Power | 1 HP (750W) |
| Cable Length | 3.94Feet (1.2m) |
| Max Vertical Lift | 30 Feet (9) |
| Maximum Horizontal Lift | 295 Feet (90m) |
| Max Flow | 190L/MIN 3000 gal/h |
| Material | Pure Copper Motor + Stainless Steel Housing + Plastic |
| Item Weight | 19.18lbs (8.7KG) |
| Inlet Pipe Size | 3-1/2'~4-1/3'',1-1/4'' (90~110mm, 40mm) |
| Outlet Pipe Size | 1'',1-1/4'',1-1/2'' rigid pipe (25mm, 32mm, 38mm rigid pipe) |
| Product Dimensions | 18.9×8.7×16.1″ (48.1×22.1×40.9cm) |
| Noise Level | 39 db |
| Protection Class | IPX4 |

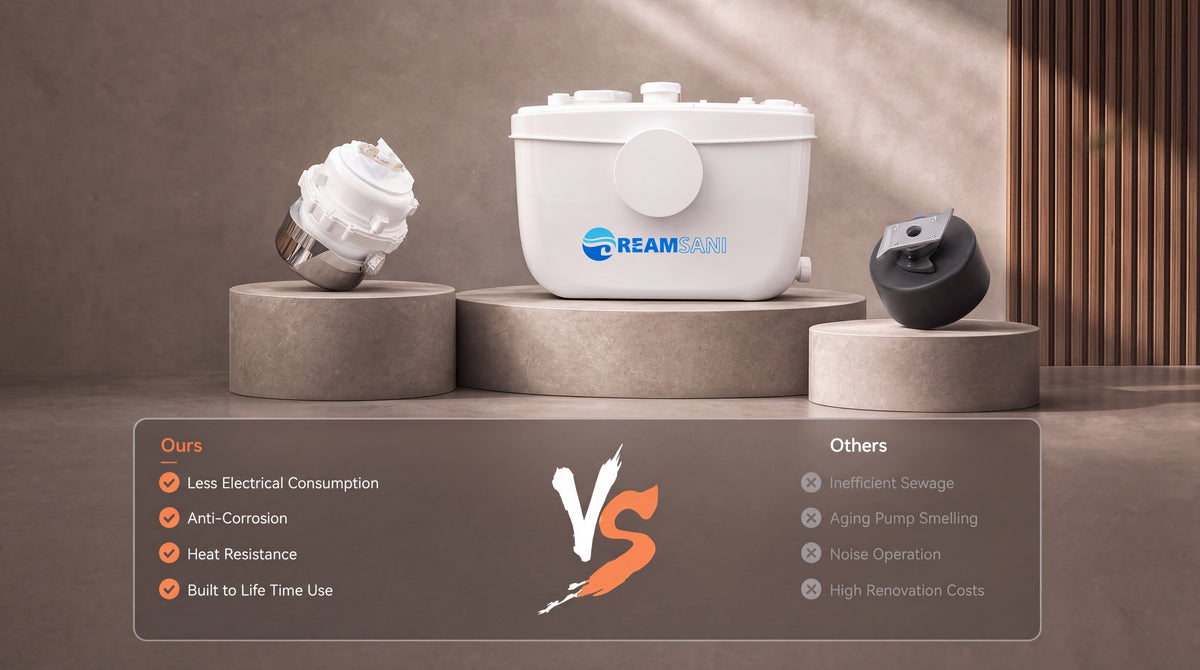

1. Stainless Steel Motor Housing – Built for Durability
The motor is protected by a premium stainless steel housing that offers superior heat dissipation and corrosion resistance compared with standard materials. It helps reduce the risk of overheating during continuous operation, ensuring more stable performance and a longer service life.
2. Functional Emergency Drain Port
Unlike decorative drain ports found on many conventional pumps, our unit features a truly functional emergency drain port on the side of the housing. It allows quick and convenient drainage during maintenance or unexpected situations, making servicing easier while minimizing mess and downtime.
3. Patented Dual-Vent Technology – Odor-Free & Easy Installation
Our patented dual-vent system effectively minimizes odors at the source, keeping the pump fresh even after extended use. No activated carbon filter or external vent pipe is required, simplifying installation while reducing additional material and installation costs.
4. Removable Top Service Cover
The removable top cover provides direct access to the pump chamber for quick inspection and cleaning. If debris enters the unit, maintenance can be completed without removing the entire pump, saving time and helping prevent impeller blockage.
5. Advanced Modular Design
The modular construction separates key functional components into independent sections, improving manufacturing quality and assembly efficiency. It also makes future maintenance and component replacement faster and easier, delivering greater reliability and a better long-term user experience.
