| Voltage | 110V 60HZ/220V 60HZ |
| Power | 1.2HP (900W) |
| Cable Length | 3.94Feet (1.2m) |

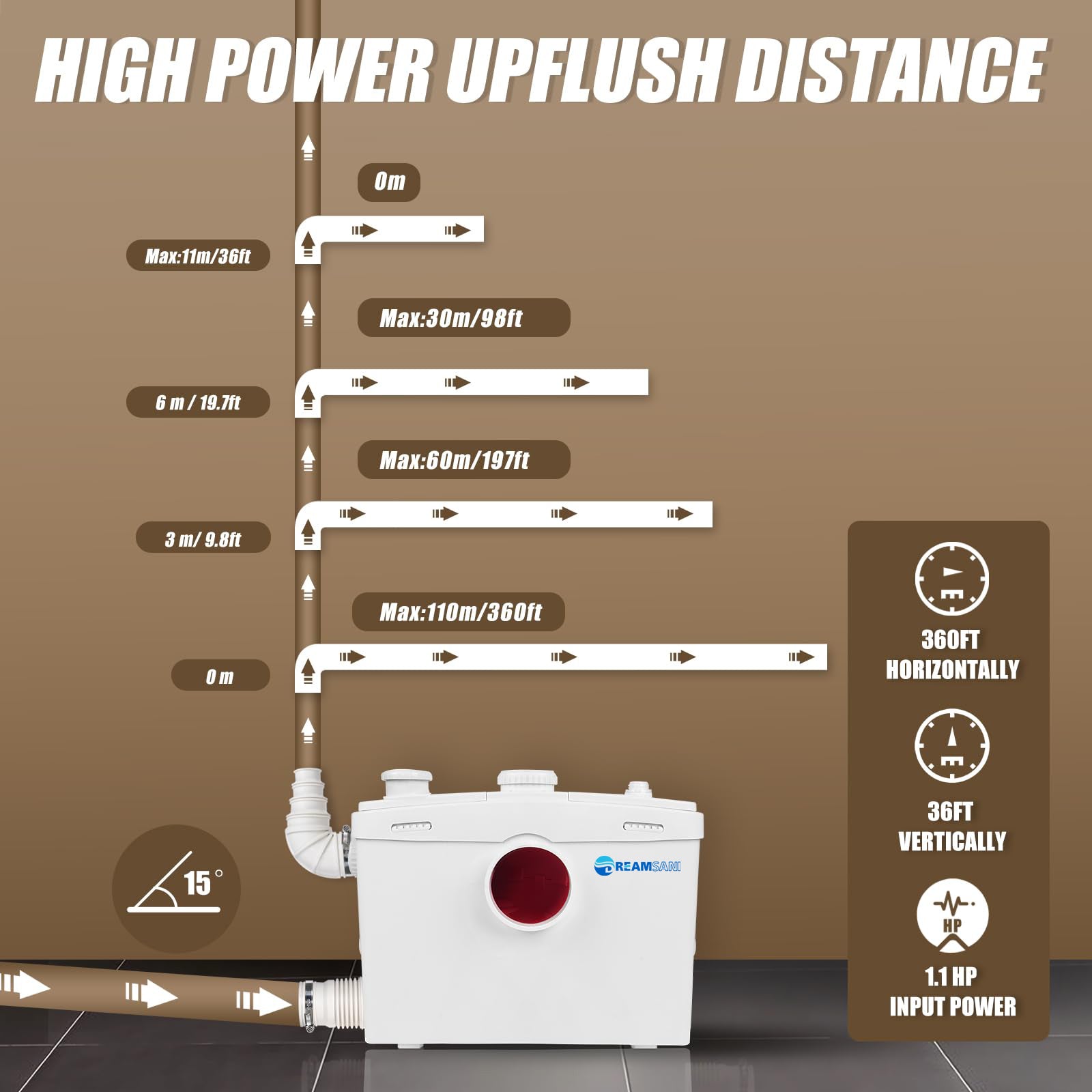

| Max Vertical Lift | 39 Feet (12m) |
| Maximum Horizontal Lift | 393 Feet (120m) |
| Max Flow | 10800GPH (40880 L/H) |

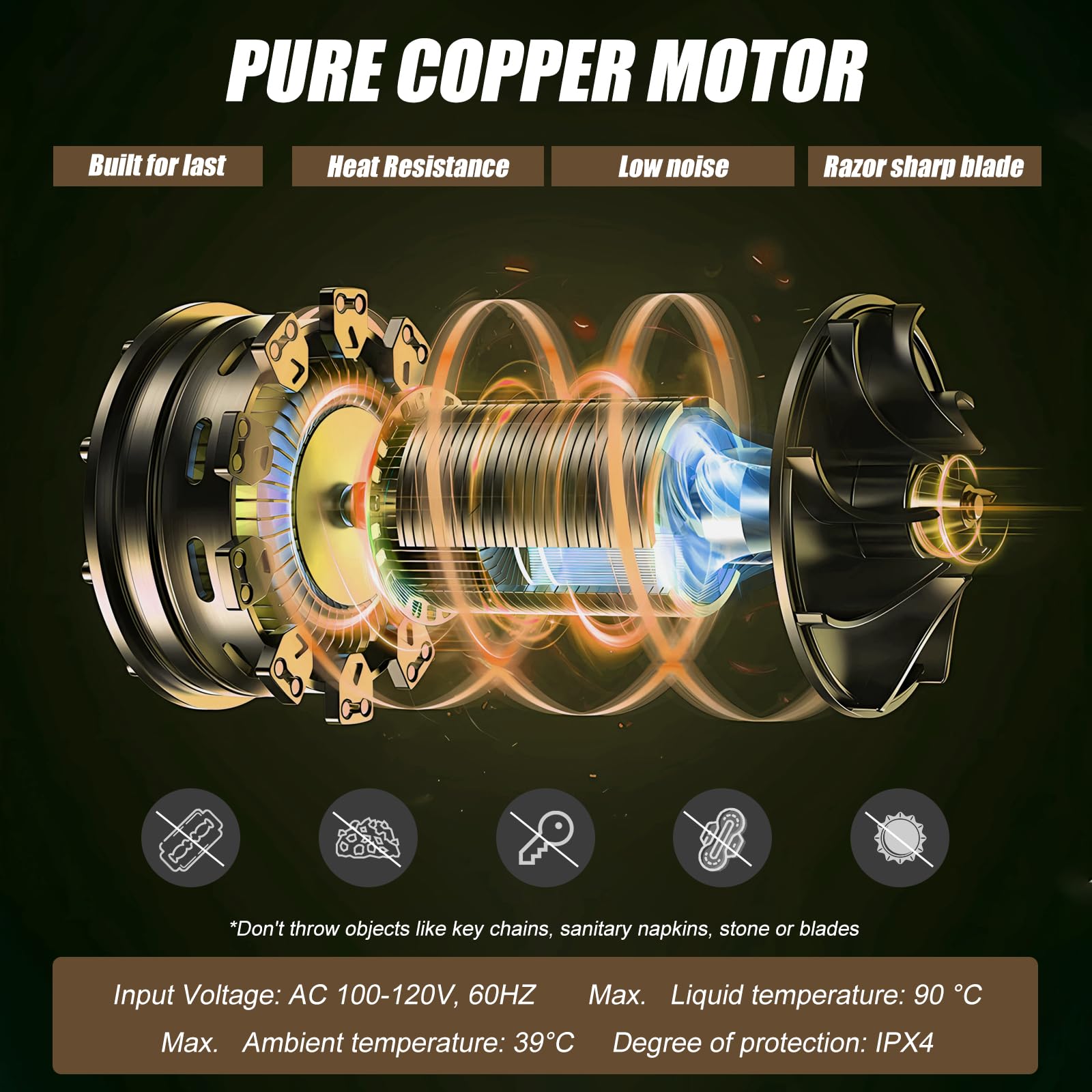

| Material | Stainless Steel + Plastic + Copper |
| Item Weight | 21lbs (9.5KG) |

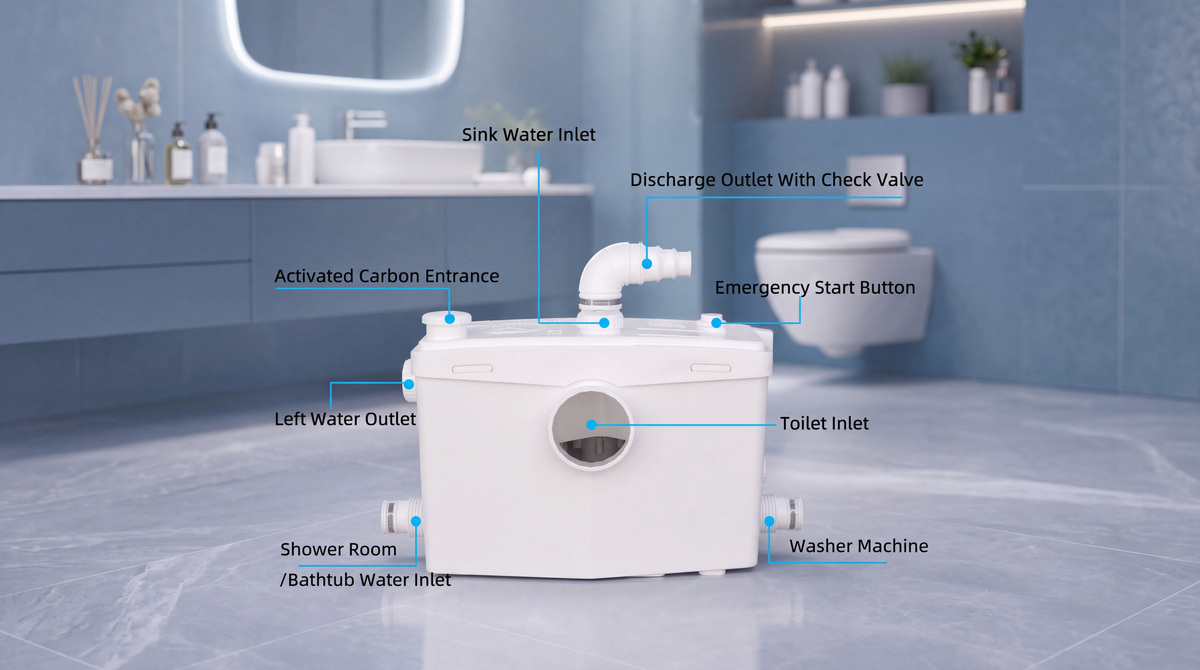

| Inlet Pipe Size | 3-1/2'~4-1/3'',1-1/4'' (90~110mm, 40mm) |
| Outlet Pipe Size | 1'',1-1/4'',1-1/2'' rigid pipe (25mm, 32mm, 38mm rigid pipe) |
| Product Dimensions | 18.9''x8.7"x16.1" (48x22x41cm) |
| Noise Level | 39 db |
| Protection Class | IPX4 |

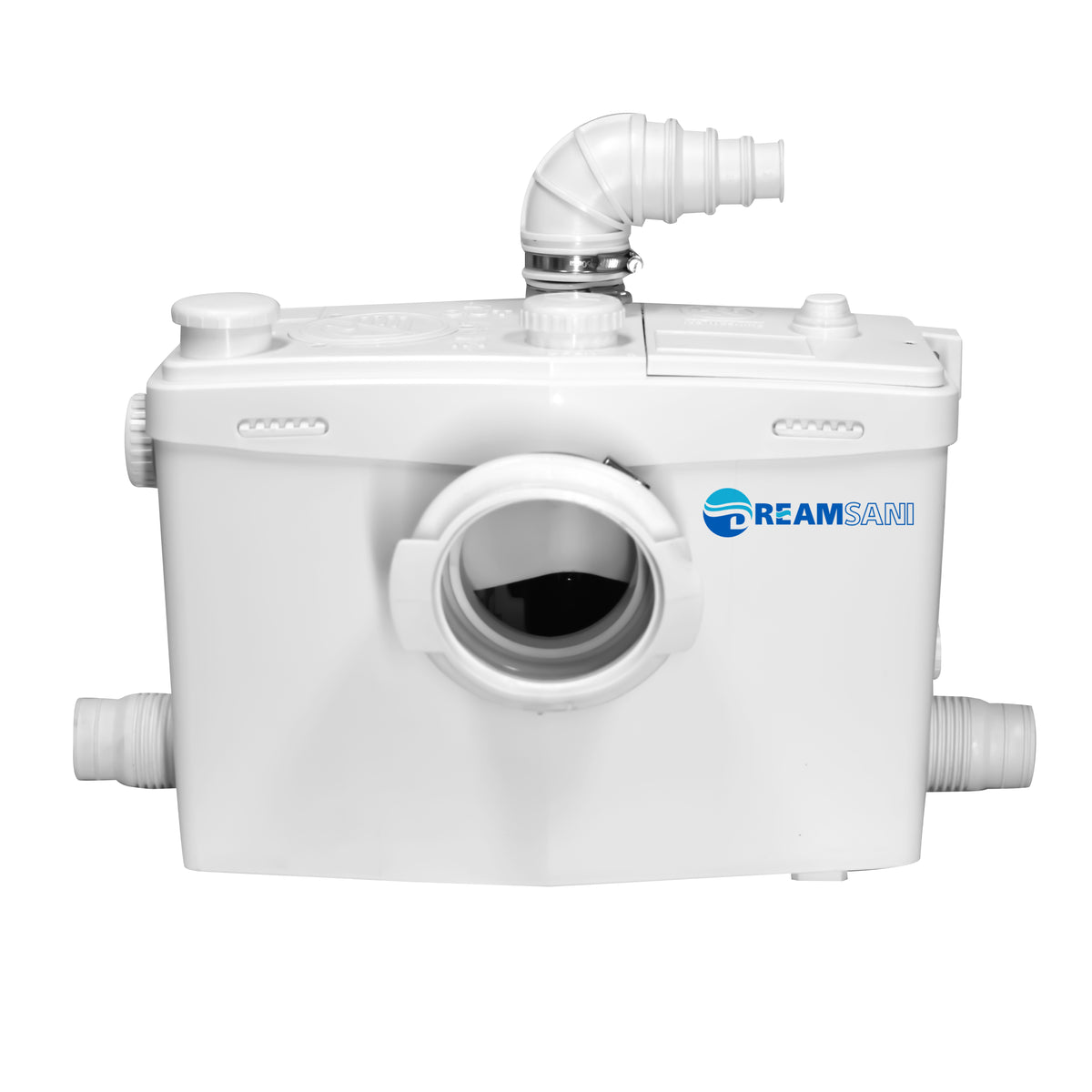

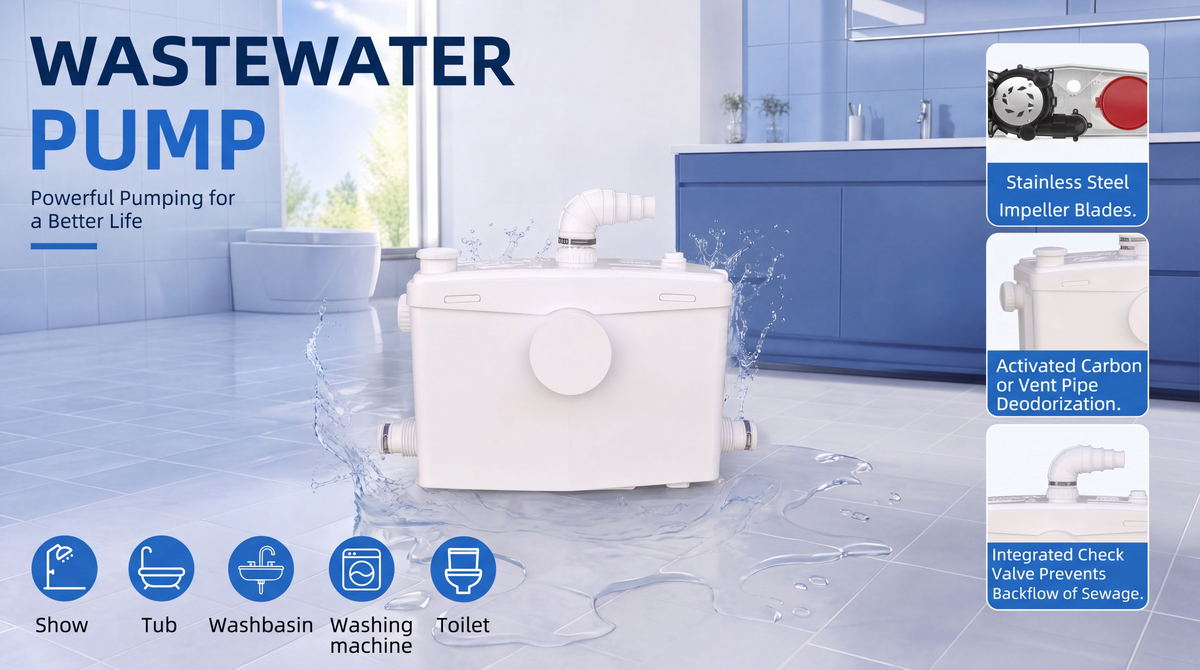

The FL0900 pump is exclusively reserved for indoor use. The macerator pump system of the appliance is integrated in a special way, which is only suitable for toilets with a horizontal outlet. For the proper operation of thegrinder it is necessarily important to follow the installation and maintenance instructions in this manual.
When properly installed and maintained according to the instructions inthis user manual, the appliance is very powerful, safe and reliable.Users for commercial or industrial purposes should be avoided. The appliance goes to working status in every 10 seconds.The macerator pump starts automatically when a certain water level is reached.

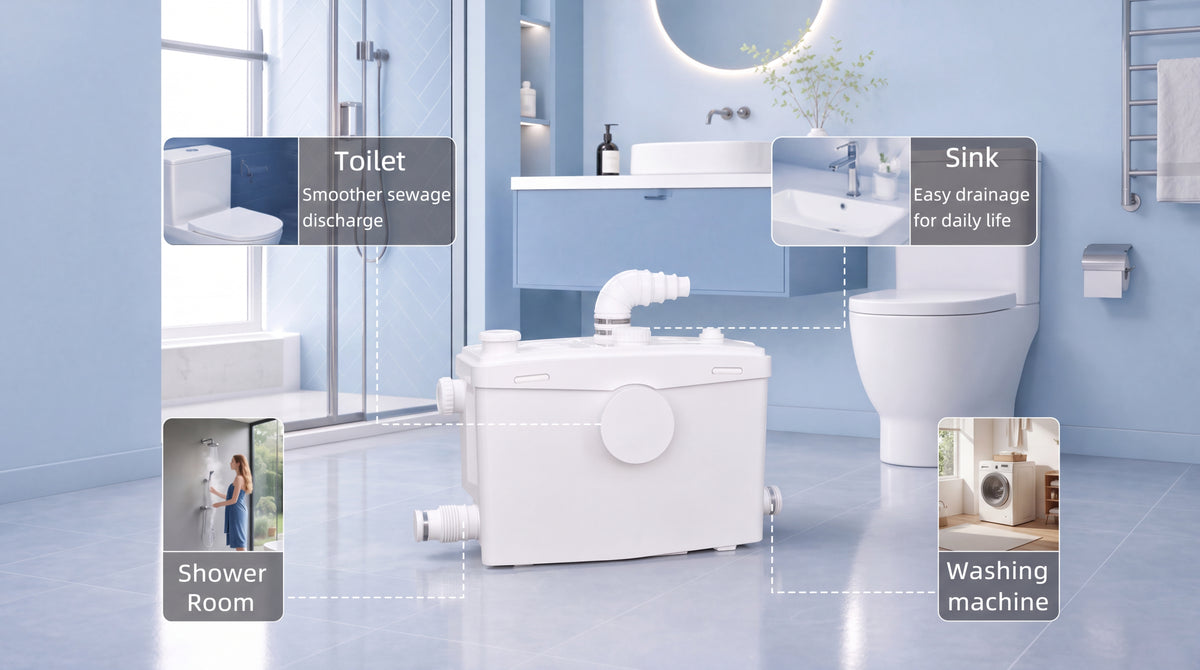

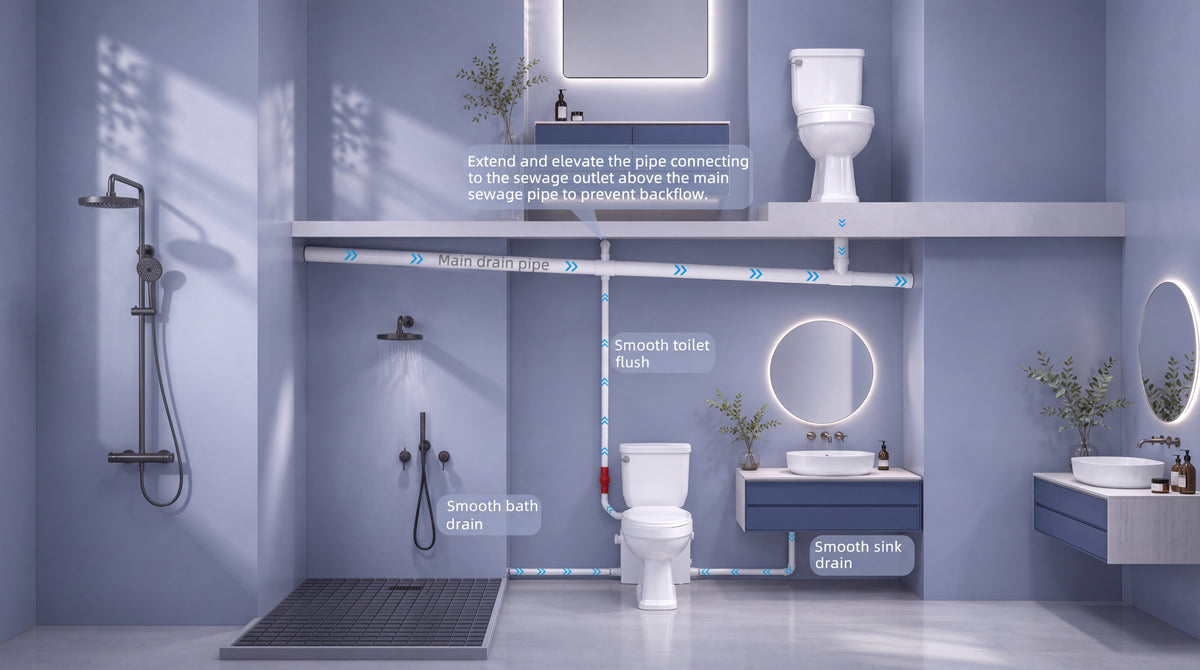

FL0900 is specially to connect with:
· WC
· Wash basin
· Bidet
· ShowerWashing machine
· Kitchen
· Urinal
